- Operating Table
- Operating Table
OT-125A
Universal operating table hydraulic lift type
OT-128A
Radiography/ X-ray operating table same type as model OT-125A but with acrylic plate table top facilitates radiography by image intensifier/ X-ray TV
Features:
‧ This model operating table is the simplest designed for use in general surgery,
emergency and for an auxiliary table.
‧ Table top consists of 4 sections, Head, Back, Seat and Leg sections and equipped
with 2 slide rails.
‧ The base, gear box and table top are covered with ABS synthetic resin which may
resist corrosion, knocking and scratches; it is durable & easily cleanable.
‧ The mattress on the table top is specially treatment, it may be easily cleaned and
no blood spot will be remained.
‧ Slightly step on the foot pedal of action to move up and down the table to suitable
position and any movement.
‧ The table base equipped with a locking screw to stop or free the table to move and
there are 4 casters for easy move.
Specification:
‧ Length of table top(Head 25cm + Back 60cm + Seat 52cm +
Leg 53cm) .... 190cm
‧ Width of table top .... 50cm
‧ Table top height lowest/ highest .... 75 ~ 100cm
‧ Lateral tilt left/ right .... 20°/ 20°
‧ Trendelenburg/ reverse trendelenburg .... 30°/ 30°
‧ Back section up/ down tilt angle .... 45°/ 0°
‧ Head section up/ down tilt angle .... 30°/ 90°
‧ Leg section up/ down tilt angle .... 0°/ 90°

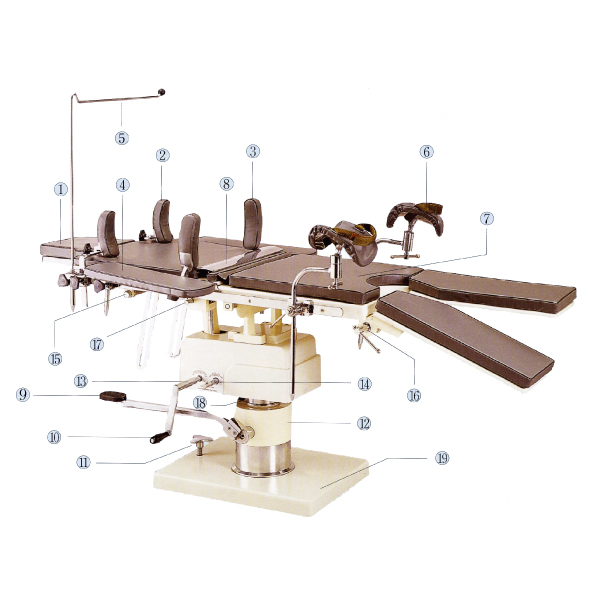

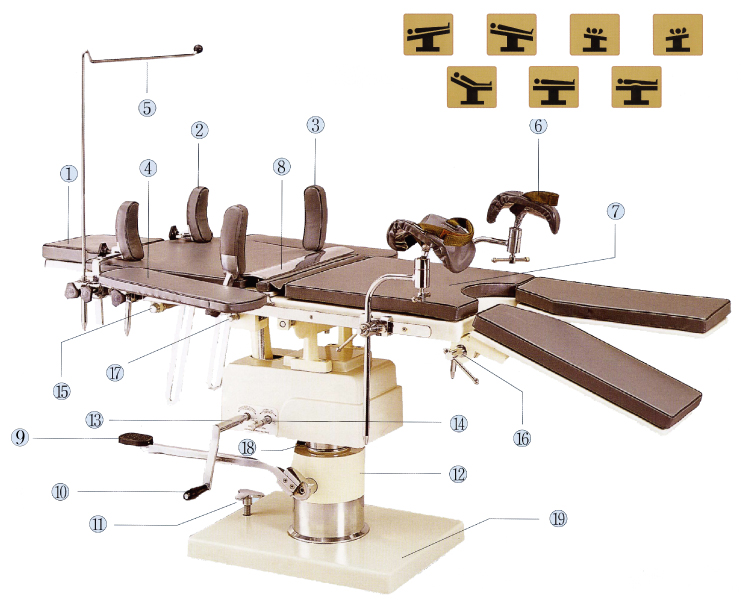

Standard accessories:
1. Head rest
2. Shoulder supports
3. Body supports
4. Arm rest
5. Screen frame
6. Knee crutch
7. Mattress
8. Built-in kidney lift, removable
9. Foot pedal
10. Crank handle
11. Locking screw
12. Rotation control
13. Trendeleburg movement control
14. Lateral tilt control
15. Head & back section control
16. Eccentric lever
17. Kidney lift control
18. Oil seal with cap
19. Table base 50mm thickness
Optional accessories:
1. Restrain strap
2. Hand grips (pair)
3. U-shaped headrest
4. Raised armrest
5. S/S funnel & waste receptacle & corrugated tubing
