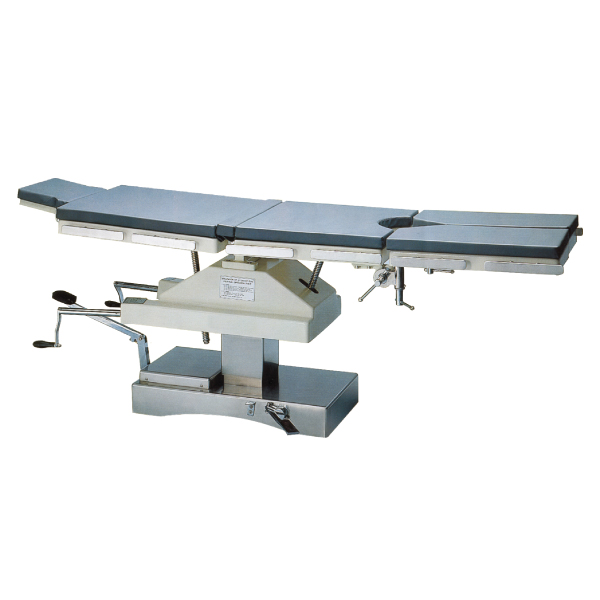

OT-600
Universal operating table, two cranks head-end control, foot pedal hydraulic elevating
OT-600A
Same type as OT-600 and table top with X-ray radiography sheets
Features:
‧ Operating table is designed to offer various position of any part of body, it can be used for general surgery such as, gynecological position, urologic position, proctologic position, thyroidectomy position gall / baladder position, trendelenburg position, reverse trendelenburg position, flex / reflex position, extension position, full chair position, etc...
‧ Control the movement of table top toward left/right and ascent/descent of back and seat section with two rotating cranks under the position of headrest.
‧ The mattress on the table top can easily to clean.
‧ Table base covered stainless steel plate equipped with a brake facilities controlled by foot pedal as well to stop or free the table to move and there are 4 casters.
Left crank handle
‧ Turn clockwise-table will tilt to left
‧ Turn anti-clockwise-table will tilt right
Right crank handle
‧ Push in and turn clockwise-seatrest will move downwards
‧ Push in and turn anti-clockwise-seatrest will elevate
‧ Pull out and turn clockwise-backrest will elevate
‧ Pull out and turn anti-clockwise-backrest will move downwards
