- Operating Table
- Operating Table

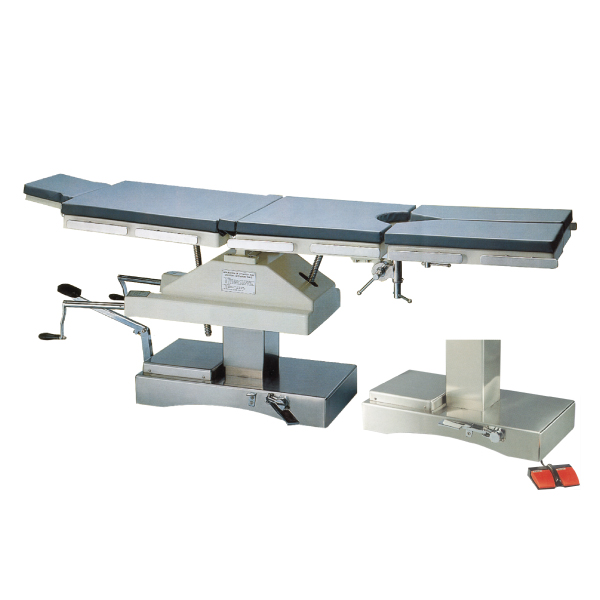

OT-700

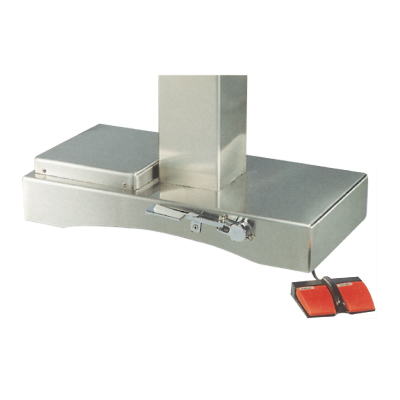

Universal operating table, two cranks head-end control, foot pedal hydraulic elevating
OT-700A
Universal operating table, two cranks head-end control, foot pedal hydraulic elevating and table top with X-ray radiography sheets
Specification:
‧ Power supply
AC 110V/ 220V, 50/60Hz for OT-700 & OT-700A
(Pls specify the voltage value when order the item)
‧ Length of table top … 195cm
‧ Width of table top … 55cm
‧ Table top height lowest/ highest … 73 ~ 103cm (without mattress)
‧ Lateral tilt left/ right … 20°/ 20°
‧ Trendelenburg/ reverse trendelenburg … 30°/ 30°
‧ Back section up/ down tilt angle … 40°/ 25°
‧ Seat section up/ down tilt angle … 35°/ 25°
‧ Leg section up/ down tilt angle … 0°/ 90° / 180°
‧ Head section up/ down tilt angle … 25°/ 90°
‧ Weight … approx 170 kgs
Standard accessories:
‧ Head rest
‧ Shoulder supports
‧ Body supports
‧ Arm rest
‧ Screen frame
‧ Knee crutch
‧ Mattress
‧ Foot support
‧ Lateral support
Optional accessories:
1. Restrain strap
2. Hand grips (pair)
3. U-shaped headrest
4. Raised armrest
5. S/S funnel & waste receptacle & corrugated tubing
6. Kidney elevator
7. 360°rotation device
