- Autoclave

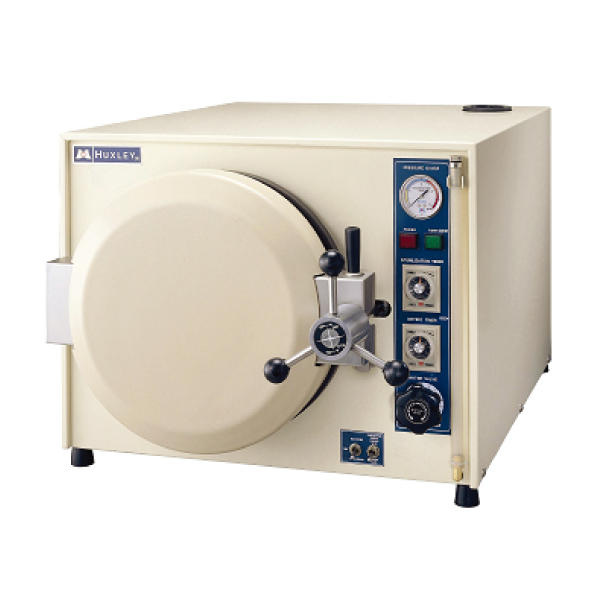

Fully automatic sterilizer
Features:
‧ The cycle of heating, sterilizing, exhaust, drying and venting phases is automatically.
‧ A buzzer announces the completion and cuts off the heating power source.
‧ The pressure-temperature gauge make ideal require reading and indicate high precision and consistent results.
‧ Integral heating system is equipped with a high efficient immersion heater and temperature switch to provide strict control of heatin temperature.
‧ Specially designed pre-heating device to pre-heat the chamber before operation and ensures efficient heating and drying functions.
‧ Automatic air venting device discharges cool air from chamber to obtain effective saturated steam.
‧ Large water reservoir supply water consumption of several sterilizing cycle.
‧ Chamber door is manually operated and actuated by rotating a door handle.
‧ The silicone-rubber sealing gasket is applied to an even pressure door seal.
‧ Chamber is made of high quality # 304 stainless steel with polished surface.
Safety devices:
‧ Safety door switch: Cycle does not start unless chamber is locked.
‧ Safety valve: Releasing steam in case of excessive chamber pressure.
‧ Overheating protection device: High temperature deviation in chamber actuates protective device cuts off the heating source immediately.
‧ Circuit protection device: Fuse protects control units when short circuit or overload occurs.
‧ Emergency exhaust: Manual exhaust to vent the chamber and remove the load in the event of a power outage.
Specification:
PS: E/P = Epoxy power coating
